Tube Mill Manufacturer — Factory Capability, Supply Scope and Terms

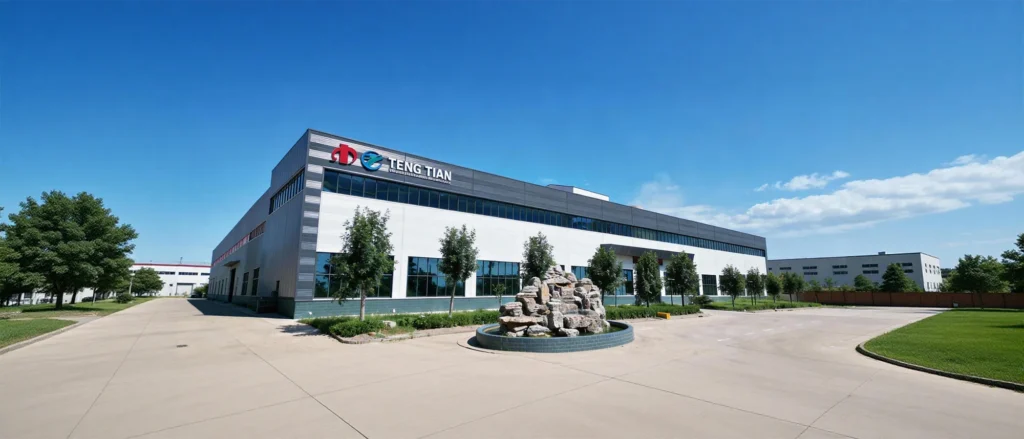

Among steel tube mill manufacturers, Tengtian builds welded pipe lines from HG32 to HG630 at its own works in Zanhuang, Hebei, machines the forming rolls in-house, and sends its own engineers to commission each line.

What Is Tube Mill Manufacturer

One supplier covers the tube mill & welded pipe production line from HG32 to HG630 at Φ10–630 mm, plus square tube by direct forming, API line pipe, H-beam, slitting, cold forming and coating lines.

Configuration Tiers Behind a Pipe Making Machine PriceWhy two quotations for the same pipe diameter can differ.See the line →Tube Mill Supply Scope, Commissioning & Acceptance CriteriaWhat is supplied, how commissioning runs and how the line is accepted.See the line →

A tube mill manufacturer is judged on four things a buyer can check: what the product range actually covers, what is machined in-house versus sourced, what certification is held and can be verified, and whether wear parts stay available after handover.

Tube Mill Manufacturer — Range, Configuration and Output

Within welded pipe, the coverage is twelve model steps and three section shapes, with two forming routes — conventional roll forming and direct forming square — and one welding process, high frequency induction.

Forming rolls and key wear parts are machined in-house on our own CNC equipment, so spare rolls stay available after handover.

Tengtian organises its business into four categories: welded pipe equipment lines, slitting and cut-to-length lines, cold forming equipment, and H-beam production lines with the coating line as a companion.

Key Parameters: Size Range and Wall Thickness Across Our Lines

Welder power band across the welded-pipe series is 150–1500 kW, stepped by model.

At supplier level, these are the ranges across our lines:

• Welded pipe: Φ10–630 mm, wall 0.5–16 mm, twelve steps.
• Square tube by direct forming: 30 × 30 – 500 × 500 mm, wall 1.5–20 mm.
• Spiral welded pipe: Φ219–820 / Φ219–1620 mm.
• Slitting: thickness 1–12 mm, width 800–2000 mm, coil to 32 t.

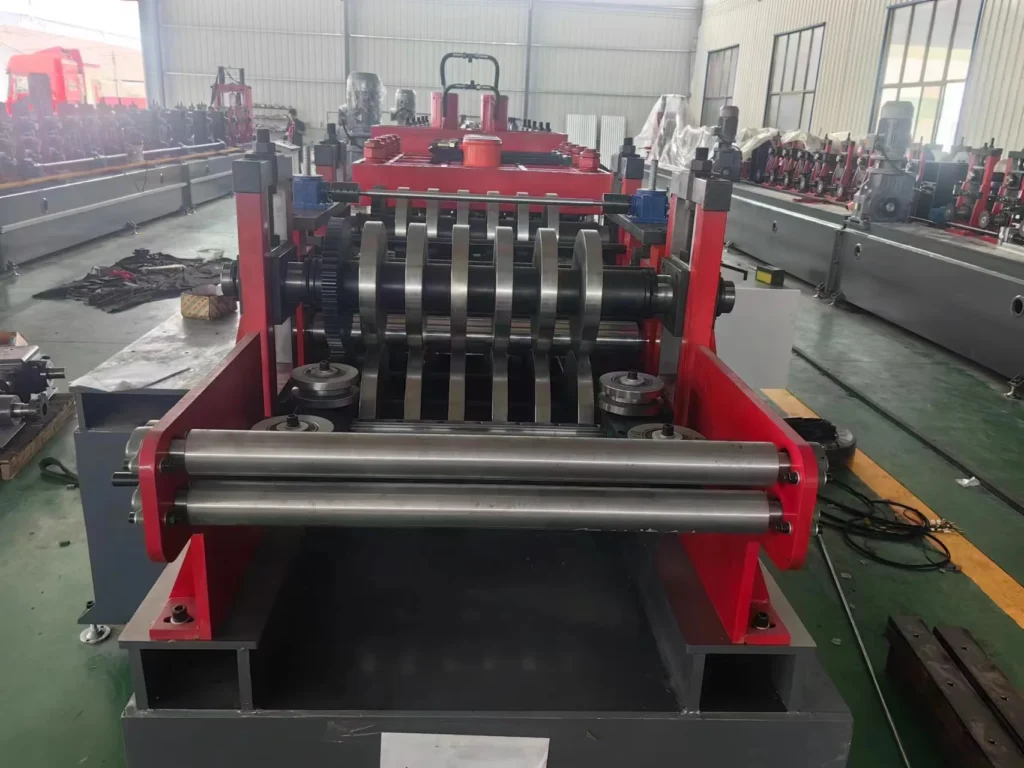

• Purlin forming: material 2–4 mm, forming speed to 20 m/min, 18 passes.
• H-beam: beam height 147–450 mm to GOST R 58966-2020.
• Coating line: square section 25 × 25 – 125 × 125 mm, wall 1.0–4.0 mm, up to 60 m/min.

How to Choose the Right Model

For a buyer comparing suppliers, the model question comes second. The first question is whether one supplier can cover the whole plant flow you are building — coil preparation, forming and welding, and finishing — because that decides how many interfaces you own.

Slitting lines, tube mills and coating lines are all on our supply list, so coil preparation, forming and welding, and finishing can come from one supplier.

Scope of Supply, Installation and Commissioning

We supply complete lines or single units. Our engineers travel to site to guide installation, commissioning and operator training; the buyer provides the installation crew and covers the engineers’ travel, lodging and daily allowance. What each scope includes and how a line is accepted is set out under tube mill supply scope, commissioning & acceptance criteria.

What is made in-house and what is bought in

Forming rolls and other key parts are machined on our own CNC equipment, which keeps roll supply and consistency in our hands; motors, drives and other standard components are bought in, so supply of those still depends on the market.

How the company is set up

The engineering team is twenty people averaging twenty years’ experience, working from our own production base, which is open to factory audit. Supply is offered as complete lines or single units, and tube mill machine price follows the configuration tier — see tube mill configuration tiers.

After-sales

Our engineers guide installation, commissioning and operator training on site, support continues online after handover, spare parts ship direct, and our after-sales team handles enquiries.

ISO 9001 tube mill manufacturer

As an ISO 9001 tube mill manufacturer, the company is certified to ISO 9001:2015, and our welded pipe equipment, cold roll forming equipment and slitting lines are CE marked under the EC Machinery Directive 2006/42/EC. Tengtian holds a national high-tech enterprise certificate and a Madrid international trademark registration, and has 30 granted utility model patents, with 7 invention patents applied for.

Delivery, payment and installation

The line is dismantled into units and shipped in containers: heavy frames are braced and secured, while precision parts and wear items travel in wooden cases together with a spare-parts pack. Standard lines ship within 90 working days of the deposit, with plant-level customisation scheduled from our own manufacturing base.

Installation and commissioning are guided on site by our engineers, with online support; the buyer provides the installation crew and covers the engineers’ travel, lodging and daily allowance. Our after-sales team handles enquiries. Payment is 30% by T/T on signing, 65% by T/T before shipment and 5% after installation and commissioning, or L/C at sight; prices are quoted ex-works (EXW).

Where our lines have gone

Our lines have gone to 25 countries — most make construction tube, and others run fire-extinguisher tube, furniture tube and other sections.

Distributors, agents and system integrators working with us are covered under for distributors and integrators; resellers of welded pipe lines can see the tube mill dealer & agent program.

Automatic tube mill manufacturer

As an automatic tube mill manufacturer, we build lines with PLC control and variable-frequency drives, with automation offered as a grade from semi-automatic to fully automatic; the result is stable running, repeatable cut length and less dependence on the operator.

What to send with an enquiry

The product you intend to make, the standard the order is written against, the plant flow you are building — coil preparation, forming and welding, finishing — and your timeline. The first two decide the line types, the third decides whether slitting and finishing are in scope, and the timeline is checked against shipment within 90 working days of the deposit for standard lines.
